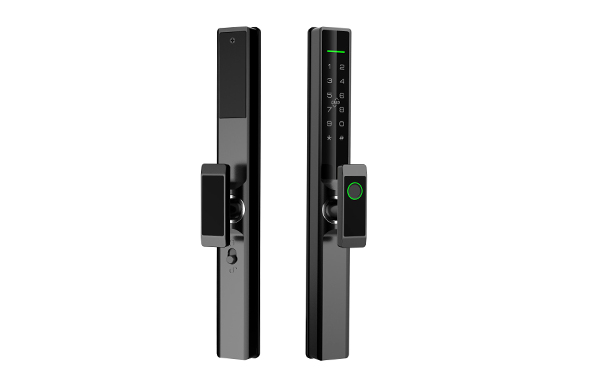

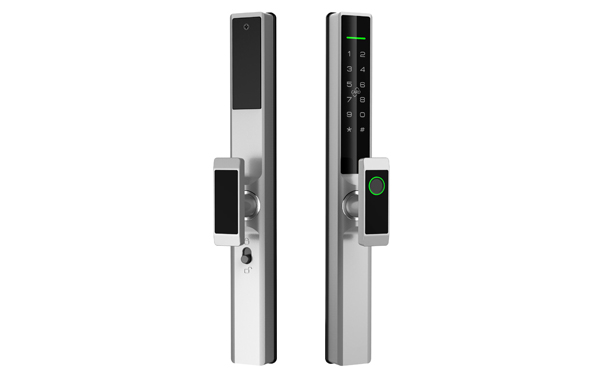

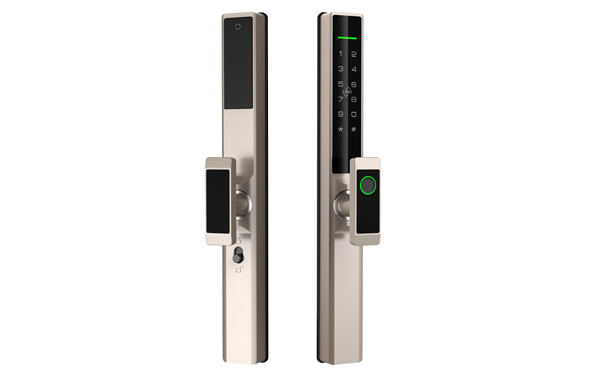

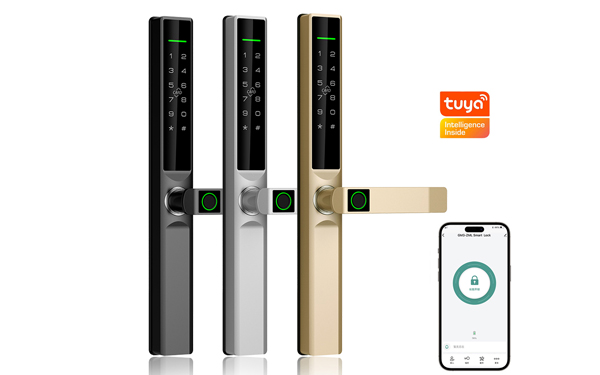

JYF-E106P Tuya/TTlock Smart Door Lock

Power supply | 4pcs AAA batteries |
Profile thickness | 40~120mm |
Net weight of single handle | ≈1.06KG |
Gross weight of single handle | ≈1.62KG |
box size | 445*195*115MM |
Size specification (L*W*H) | Front: 330*37*67MM back:330*37*67MM |
System Language | Chinese/English |
Voltage Range | 4.5-6.5V |
Emergency power supply | Type-C interface |
Dummy code | Yes |
Low voltage alarm | Yes |
Trial and error alarm | Yes |
Anti-breaking alarm | Option |
Anti-static test | level 4 |
Anti-electromagnetic interference | support |
Battery life | Normal continuous opening 5000 times |
Handle opening and closing life | ≥100,000 times |
Protection class | IPX5 |
Lock body specification | 2085/2885/3585/4585/double hook single point 2885/3585/Double Hook Multi-Point 2585/2885/3585/4085/4585/5085/6085/7085/3585(330)/flush single point 2885(270)(330)/3585(270)/3585(330)/4085(330)/4585(330) Flush Multi Point |
Ambient Temperature | -30℃~60℃ |
Ambient Humidity | 20%~93 |
Rejection rate | <0.1% |
Recognition rate | <0.005% |
Unlocking method | Standard: fingerprints (100), passwords (199 sets), cards (199),Mechanical key (2 pieces), WeChat small program SweetHome temporary password |
Optional: remote control, cell phone APP (Tuya smart , TTlock, choose one of the two) |
