JYF-G925T Tuya/TTlock Smart Door Lock
Time:2024-07-10 Class:Tuya/TTlock Smart Door Lock Browse:
Applicable door type |
glass door, aluminum door with frame, wooden door, sliding door |
Door type specification |
door gap 3 ~ 10mm |
(a) |
Frame-less door with the 8~12mm thick glass, the 8mm glass needs to install the thickening plates. |
(b) |
Door with the 40-70mm thick frame. (door gap 3~10mm) |

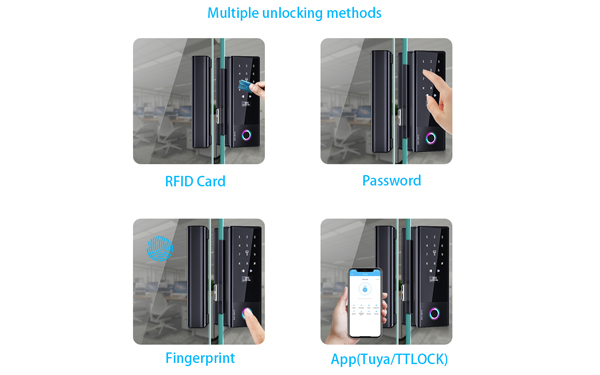

Unlocking methods |
fingerprint, password, card,Bluetooth, temporary password, Mechanical key unlocking (no key for framed door) |
Optional |
Bluetooth mini-program, Bluetooth attendance,RF Remote control, WiFi remote unlocking |
Mechanical key unlocking |
key inserted into the lock core hole, rotate 90° counterclockwise to unlock Key back to the horizontal |

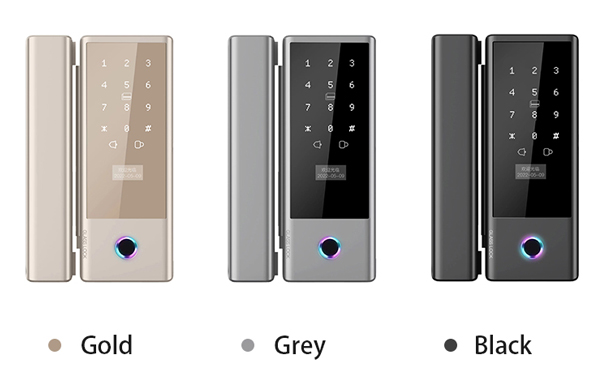

Colors |
Matte black, space gray, champagne gold |
Material |
ABS+Acrylic |
Fingerprint speed |
≤0.35 |
Door opening mode |
applicable push or pull, induction left open/right open |
Product weight |
about 1.25kg |
Working temperature |
-25 °C ~+65° C |
Emergency power supply |
USB Type-C |
Power supply |
4pcs 1.5V AA alkaline dry batteries |
Storage capacity |
fingerprint (100) card and password( 1000groups) |
Card type |
M1, IC |
Fingerprint sensor |
semiconductor biometric identification |
Static power consumption |
≤ 120uA |
False reject rate |
≤ 1% |
False accept rate |
≤ 0.001% |
![](/d/file/2024-07-10/cc0cb9d75db2f158d65cd6fdaa3d7117.jpg)
![](/d/file/2024-07-10/1c137215a3f06d8a51b4d370a51223c2.jpg)
![](/d/file/2024-07-10/b062b1fb1edad45a364acd9292bf8ba5.jpg)
