JYF-TF2LED-W Access Control System

Card Type | Read 125KHz Card and HID Card(Optional |
Read 13.56MHz Mifare card and CPU card(Optional) | |
Keypad Characteristic | Capacitive touch keypad |
Output Way | Contain reader mode, the transmission format could be adjusted by user |
Access Way | Fingerprint , card,code or multiple combination methods, mobile phone App (Optional) |
Admin CardAlarm Output | Support admin add card and admin delete card |
User Capacity | 10000 |

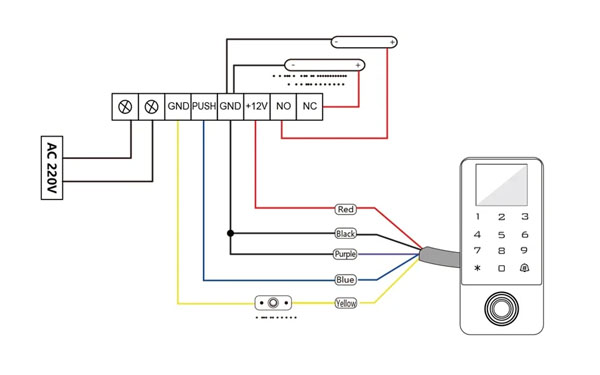

Unlock Signal | NO, NC, COM output using relay |
Unlock Signal | Use MOS tube output to directly drive the alarm (optional) |
Operating Voltage | DC12-24V |
Standby Current | ≤60mA |
Operating Current | ≤100mA |
Operating Temperature | -40℃-60℃ |
Operating Humidity | 0%-95% |
Access ways | Fingerprint, card, code, multiple combination methods, mobile phone App (Optional |
