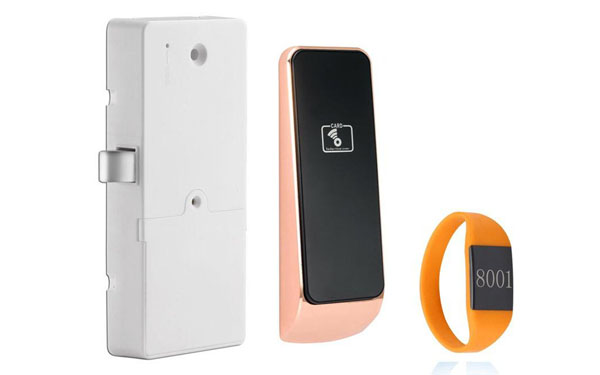

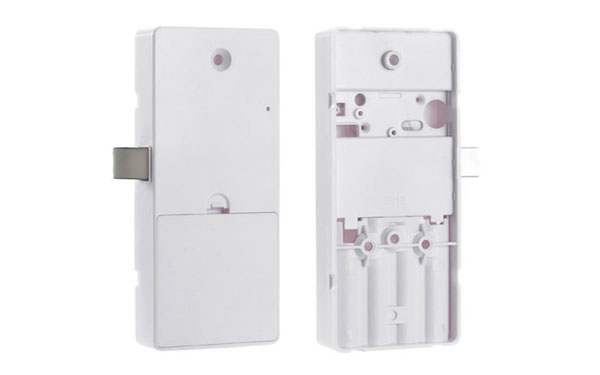

JYL-L20EM Locker Lock

Brand Name	Joneytech
Model Number	JYL-L20EM
Unlock way	card
Door Type	Wood door ,Stainless Steel door ,Aluminum door ,Brass door
Battery	DC6V (4pcs 1.5V alkaline batteries)
Door thickness	15-25mm
Emergency port	Yes
Certification	CE FCC ROHS
Static Power Supply	<10u A
Dynamic Power Supply	< 150mA
Power Supply	DC6V (4pcs 1.5V alkaline batteries)
Lifetime of battery	Normally can exceed 20,000 times
Working temperature	-20~70°C
Working humidity	10%~95%RH

　　1) Single card unlocking or double card unlocking both available. (guest card + service card)

　　2) With rebound function – it can be opened smoothly without installing the door handle.

　　3) Low voltage alarm function – if the voltage lower than 4.8V.

　　4) Card in plastic wristband or watchband – waterproof, moisture proof, anti-corrosion.

　　5) Anti-pry alarm function – when unlocking abnormally, the lock will alarm.

　　6) External power supply for emergency unlocking.

　　7) TM card unlocking with more than 100,000 times life span.

　　8) Four level management available – master card, manage card, service card, guest card.

　　Master Card: Only master card in the same system, issue or cancel service card and guest card.

　　Manager Card: Open all locks in the system. (For single card unlocking)

　　Service Card: Open locks in certain area.

　　Guest Card: Open one certain room.
