JYL-OS8815 Tuya/TTlock Smart Door Lock
TT LOCK Software video introduction
exterior fashion and the core of intelligent

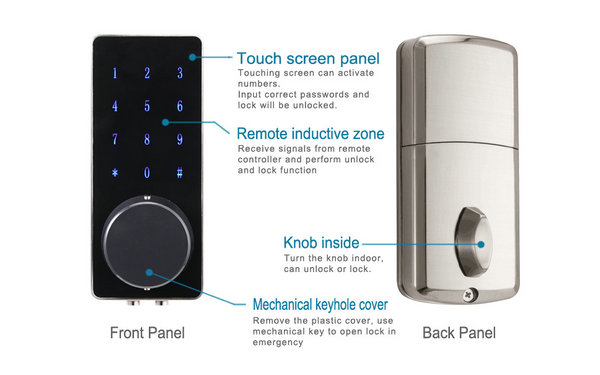

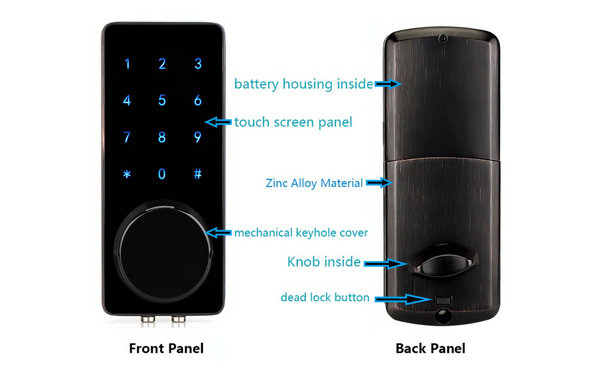

Touch screen keypad with blue backlight function.
-Messy code input, Peeping prevention function.
Easy installation and code change
Door thickness applicable 28-65mm
Backup power terminal available.

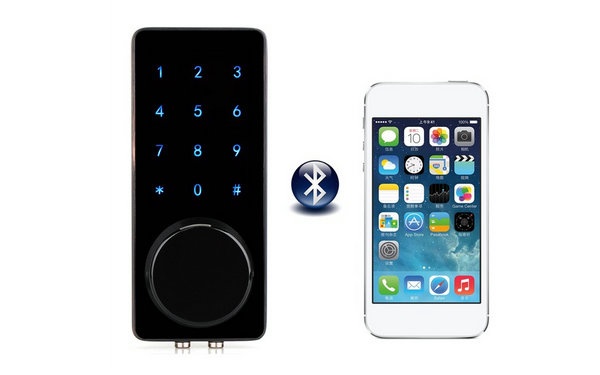

3 kind of unlocking way:Mechanical key+Mobile bluetooth+Passward.
100 password users capacity.Can add more if needed. Bluetooth user no quantity limited.
Ideal application for office,home,apartment etc.
Touch screen keypad with blue backlight function.
-Messy code input, Peeping prevention function.
Easy installation and code change
Door thickness applicable 28-65mm
Backup power terminal available.
3 kind of unlocking way:Mechanical key+Mobile bluetooth+Passward.
100 password users capacity.Can add more if needed. Bluetooth user no quantity limited.
Ideal application for office,home,apartment etc.
| Item No.: JYL-OS8815 | |
| Product | Bluetooth password control door lock |
| Type | Bluetooth 4.0 technology |
| Mobile style | Android 4.3 version above, Apple iphone system |
| Effective Distance | 30 meters |
| Unlock Ways | Code, Bluetooth control, Mechanical Key |
| Length Of Master Code | 6 Digits |
| Work Voltage | 4pcs AA alkaline Cell (4.8-6.5VDC) |
| Static Current | <30uA |
| Working Current | <200mA |

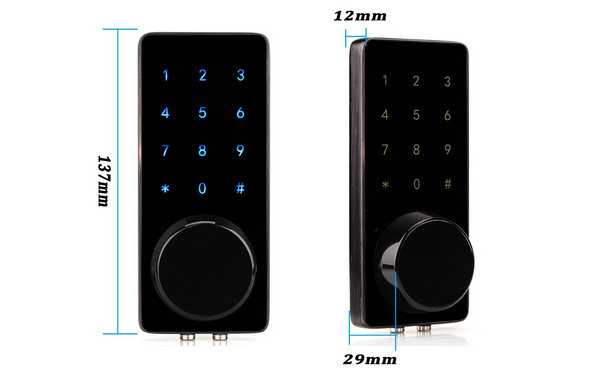

| Products size/td> | 137*60*69mm |
