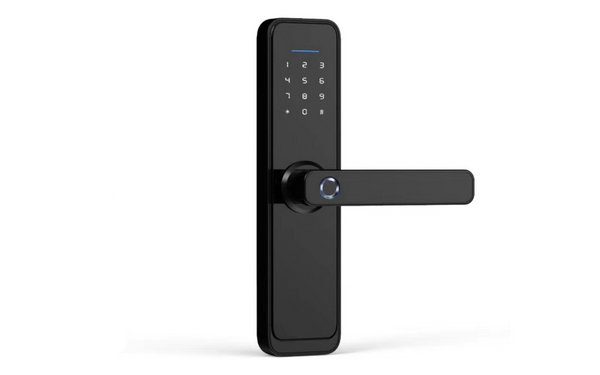

JYF-T2019B Tuya/TTlock Smart Door Lock

　　Zinc Alloy material, wifi tuya APP

　　1. Support Fingerprint, password, card and mechanical

　　2. Touch Screen, semiconductor fingerprint senser

　　3. Fingerprint capacity: 100pcs

　　4. RFID card capacity: 50pcs

　　5. pasowrd combination: 50 numbers

　　6. Battery lifetime: Standby 13 month

　　7. System function: full voice broadcast

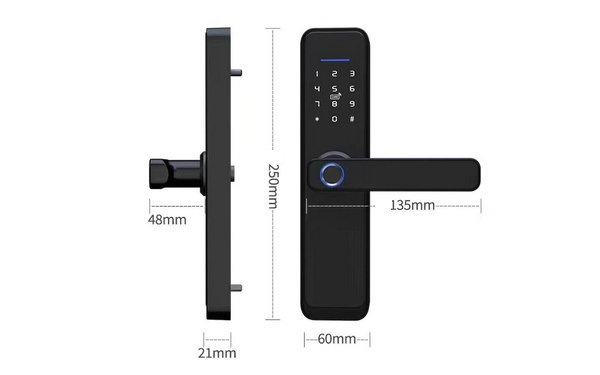

　　8. Applicable door thickness: 35-120MM

　　9. temperature: -25 to 55 ℃

Items	Parameters
Quiescent current	≦50uA
Dynamic current	≦180mA
Administrators’ number	9
Fingerprint number	100
Fingerprint + password + card capacity	200
Fingerprint scanner	semiconductor
Fingerprint contrast time	≦0.6Second
Fingerprint identification Angle	360°
False Rejection Rate	≦0.1%
False Recognition Rate	≦0.0001%
Reaction time	≦0.1 Second
Power type	6V
Emergency powering	5VDC
Working temperature	-25℃~60℃
Working Relative Humidity	20%~90%RH
Human voice	Yes
KBD	Touch standard 12-bit keyboard
Password Length	6-8bit
Phantom password	16bit
Low voltage alarm	4.8±0.2V
Unlock time	≦1Second
