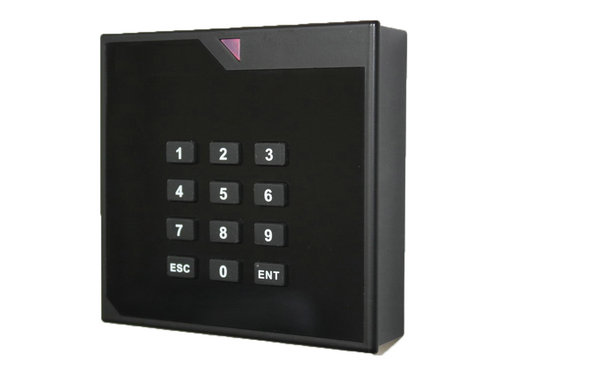

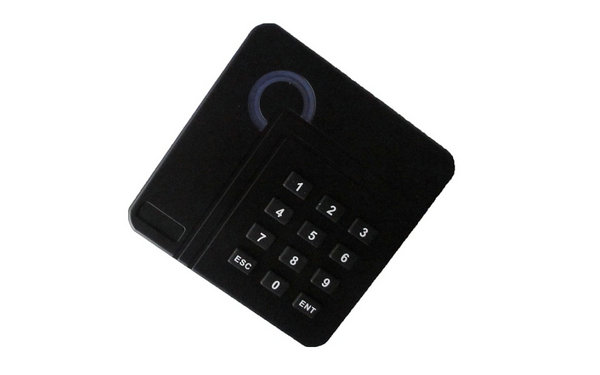

JYC-13/14/15E(M) Metal RFID Reader Access Control System

JYC-13E(M) 86×86×18（mm）

JYC-14E(M) 100×100×20（mm）

JYC-15E(M) 100×100×22（mm）

　　Main Features :

　　.Wiegand 26 Access Control card reader

　　.For EM cardor Mifare card

　　.125khz

　　.Wiegand 26/34

　　Connection:

　　Red ----------------------DC12V

　　Black---------------------GND

　　Green---------------------D0

　　White---------------------D1

　　Blue----------------------LED

　　Yellow-------------------BEEP

　　Grey---------------------Ring

　　Purple-------------------Ring

　　Main specification :

Read Range	Up to 10CM
Working current	≤100mA
Power / Current	DC 9-12V / Max.70mA
Input Port	2ea (External LED Control, External Buzzer Control)
Output Format	26bit Wiegand (default)
LED Indicator	2 Color LED Indicators(Red and Green)
Beeper	Yes
Operating Temperature	-20° to +65°C
Operating Humidity	10% to 90% relative humidity non-condensing
Color	Black and White
Material	ABS+PC with texture
